Name: Wearable Bluetooth 2D Barcode Scanner DI9010-2D for Logistics
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

Casa Prodotti barcode scanner senza fili

Wearable Bluetooth 2D Barcode Scanner DI9010-2D for Logistics

Dettagli:

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1

Contatto

Descrizione di prodotto dettagliata

Modello n.:	DI9010-2D	Tipo di interfaccia:	2.4G Bluetooth
Velocità di scansione:	300 ricerche/sec	Elemento di scansione:	CMOS
processore:	32bit	Tempo di avvio:	750 ms
Risoluzione:	3mil	Profondità di campo:	55-350 mm
Modalità di scansione:	Modalità trigger Modalità di senso automatico	Tolleranza al movimento:	25cm/s
Contrasto di stampa:	25%PC	Luce ambientale:	70000lux
Peso:	35G senza cavo	Capacità della batteria:	350 mAh
Tempo caricantesi della batteria:	circa 1,5 ore
Evidenziare:	wearable Bluetooth barcode scanner , 2D barcode scanner for logistics , wireless Bluetooth barcode scanner

Wearable 2D Barcode Reader Portable Bluetooth Android Barcode Scanner

Product Specifications

Model NO.	DI9010-2D
Interface Type	2.4G Bluetooth
Scan Speed	300 scans/sec
Scan Element Type	CMOS
CPU	32bit
Startup Time	750ms
Resolution	3mil
Depth of Field	55-350mm
Scan Mode	Trigger Mode, Auto Sense Mode
Prompting Mode	LED Indicating Lamp, Buzzer
Motion Tolerance	25cm/S
Print Contrast	25%PCS
Ambient Light	70000lux
Weight	35g (Without Cable)
Charging Cable	Type C
Battery Capacity	350mAh
Battery Charging Time	About 1.5 Hours
Continuous Working Time	3 hours
Transport Package	120×104×40mm
Specification	120×104×40mm
Trademark	DYscan
Origin	China

Product Description

The DI9010-2D is a high-performance 2D Bluetooth barcode scanner featuring advanced CMOS image recognition technology. This wearable ring scanner efficiently reads barcodes from paper, goods, screens, and other media surfaces.

Applications: Manufacturing, warehouse management, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.

Technical Parameters

Light Source	Lighting: White LED (Automatically adjusts brightness) Aiming: Green LED (525nm wavelength)
CMOS	640×480 CMOS
CPU	ARM 32-bit
Resolution	1D: ≥3mil, 2D: ≥8.7mil @PCS90%
Reading Angle	Roll: ±360°, Pitch: ±60°, Yaw: ±70°
Visual Angle	Horizontal 40° × Vertical 30°

Supported Symbologies

1D Codes: Codabar, Code39, Code32, ITF25, Industrial 25, Matrix 25, Code93, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, MSI, Febraban
2D Codes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

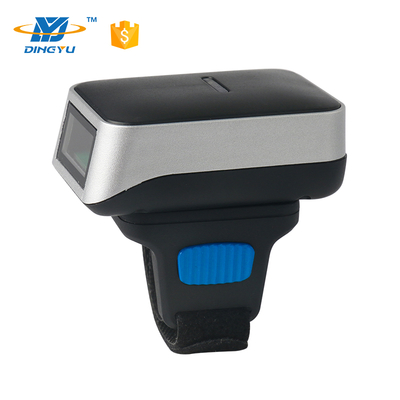

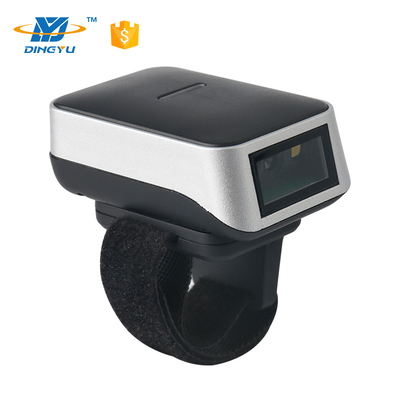

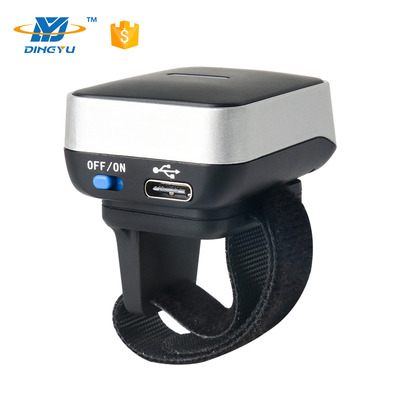

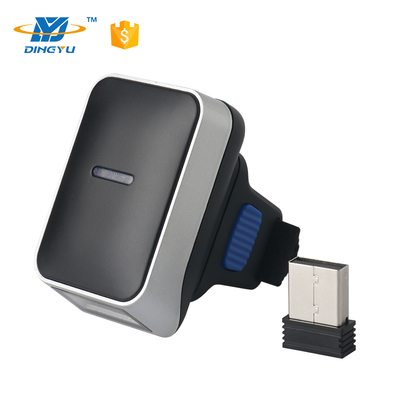

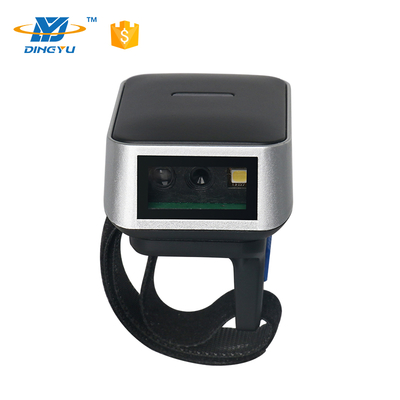

Product Images

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan is a professional manufacturer with 18 years of experience. Our products undergo rigorous testing (engine age test, wire bend test, switch life test, shock resistance test) and are CE, FCC, and ROHS certified.

Q2: What is your quality control process?

We conduct 1 million wire bend tests and button tests. All devices are thoroughly tested before shipment.

Q3: What is the warranty period?

12 months warranty.

Q4: How do you maintain stable performance?

We use assembly line production with at least 4 quality checks before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services (custom logos, packaging) and ODM support with our technical team.

Q6: What are your company strengths?

We have specialized departments for R&D, production, and sales/marketing, ensuring comprehensive product development and support.

Q7: Are drivers required?

No, our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
