OEM 32 Bit 2D Mini Barcode Scanner Module with 4mil/0.1mm Reading Precision and USB Interface

Dettagli:

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1

Contatto

Descrizione di prodotto dettagliata

Modello n.:	DE2120	Tipo di interfaccia:	USB
Velocità di scansione:	200 ricerche/sec	Elemento di scansione:	CMOS
Pixel:	640*480	Precisione di lettura:	4 mil/0,1 mm
Velocità di decodifica:	25cm/s	Profondità di campo:	25 mm-400 mm
Modalità di scansione:	Manuale, Continuo, Rilevamento automatico, Controllo comandi	Contrasto di stampa:	25%
Luce ambientale:	Ambiente buio, luce naturale interna	Peso:	4g
Dimensione:	16,0 mm * 21,2 mm * 12,0 mm	Interfaccia:	FFC 12 PIN Pitch 0,5
processore:	32 bit
Evidenziare:	32 Bit Barcode Scanner Module , 2D Mini Barcode Scan Engine , 4mil/0.1mm Reading Precision 2D Barcode Reader Module

OEM 32 Bit 2D Mini CMOS Barcode Laser Scanner Module with Flat Cable

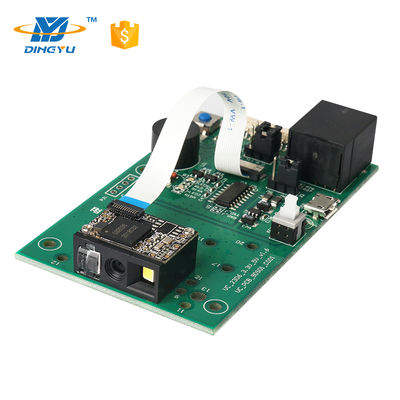

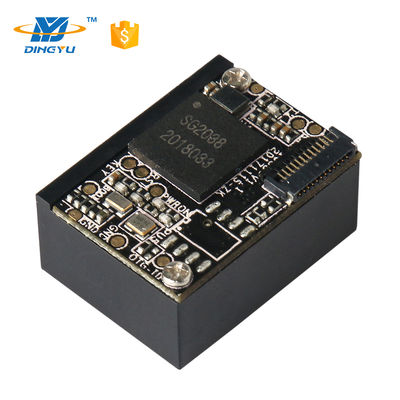

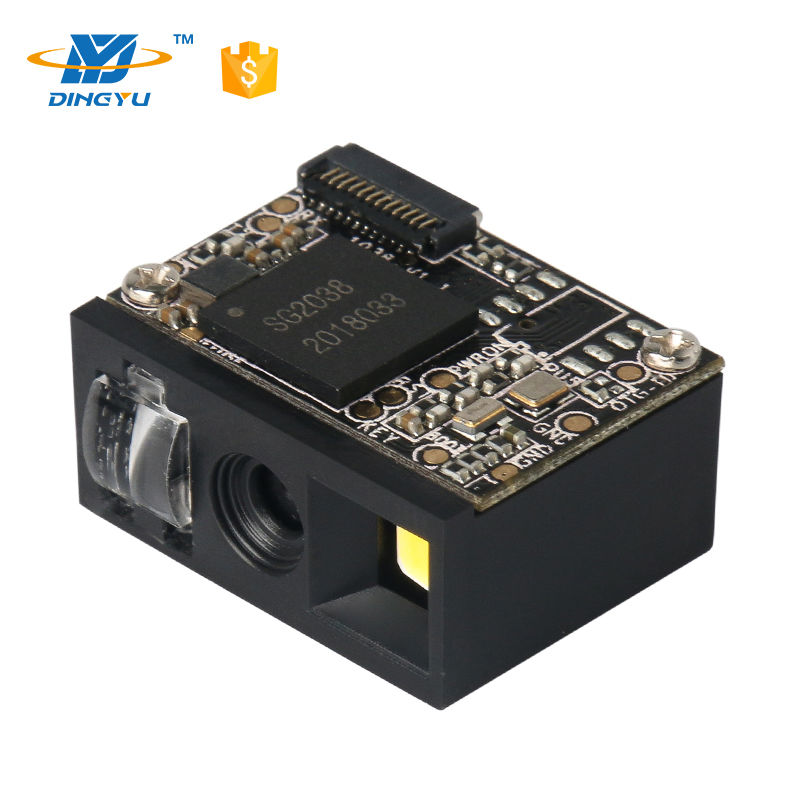

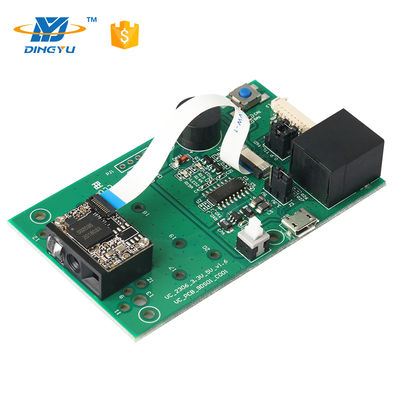

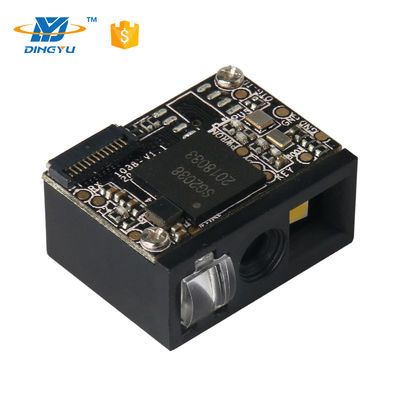

The DE2120 is a practical embedded barcode scanner module featuring leading CMOS image recognition technology and intelligent image recognition system. Capable of scanning universal 1D and 2D codes, it supports USB and TTL interfaces, and reads barcodes from paper, goods, screens, and other media. Easily integrated into various OEM products including handheld devices, portable equipment, fixed installations, and barcode collectors.

Technical Specifications

Parameter	Specification
Scan Type	CMOS
Light Source	Red Light LED 625±10nm(aim), 5600K LEDs (Lighting)
CPU	32-bit
Resolution	640*480
Reading precision	≥4mil/0.1mm(PCS90%,Code 39)
Decoding speed	25CM/S
Depth of field	25mm-400mm
Scan Mode	Manual, Continuous, Auto Sense, command control
Scan angle	Test Conditions: CODE39,10mil/0.25mm,PCS90% Pitch: ±45° Roll: ±360° Skew: ±40°
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Strande 2 of 5, Codabar(NW-7), MSI Plessey, GS1 Databar(RSS), China Post, etc. 2D: QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, etc.

Applications

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan is a professional manufacturer and developer of barcode scanners with 18 years of field experience. We have a professional QC team and testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, and ROHS certifications.

Q2: How do you perform quality control?

We conduct wire bend tests 1 million times, button tests 1 million times, and test all devices before shipping.

Q3: What is the warranty period for barcode scanners?

12 months warranty.

Q4: How do you maintain stable performance?

We implement flow line production throughout processing. Every product is tested at least 4 times before delivery.

Q5: Do you provide OEM or ODM services?

We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.

Q6: What are your company strengths?

As a professional scanner manufacturer, we have specialized departments (R&D, production, marketing/sales) each with dedicated directors and teams.

Q7: Do I need to install drivers?

No. Our scanners support plug-and-play functionality and work with Windows, Mac OS, iOS, Linux, UNIX, and Android without requiring drivers.
