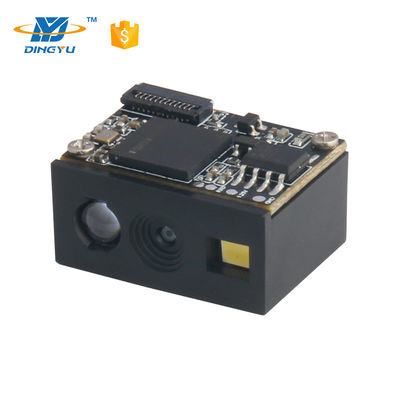

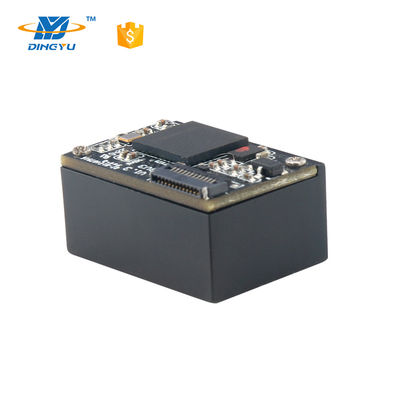

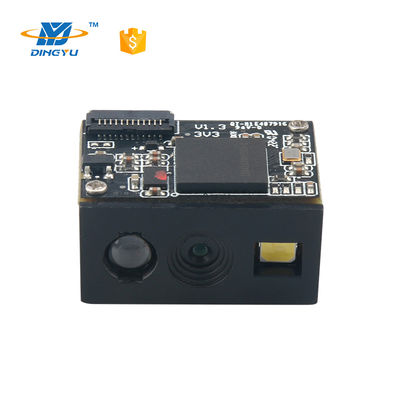

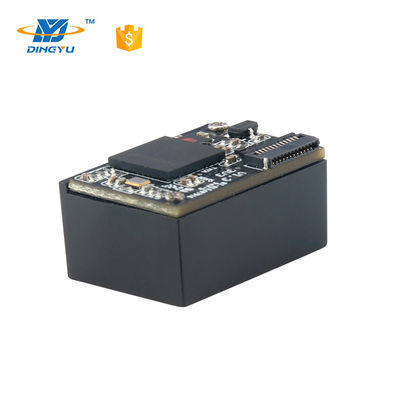

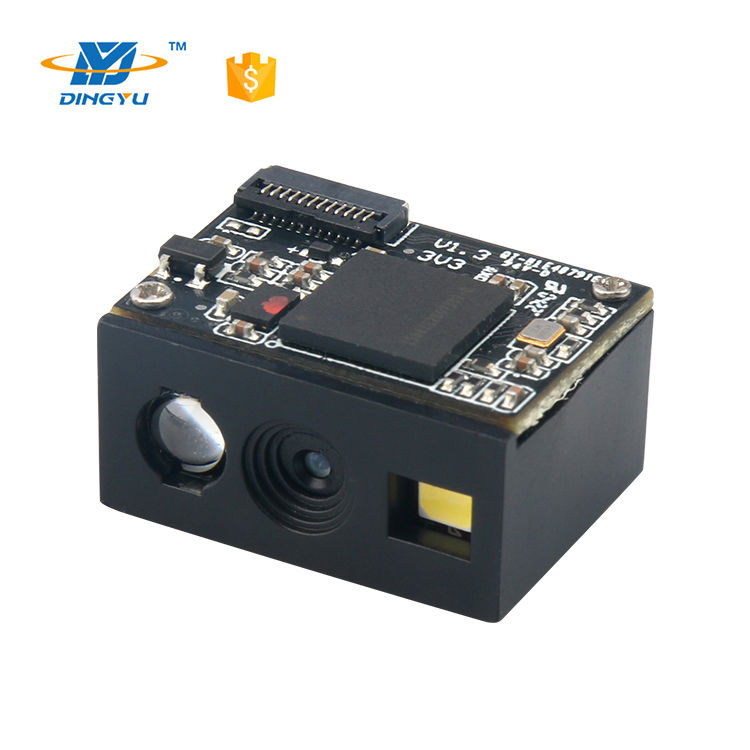

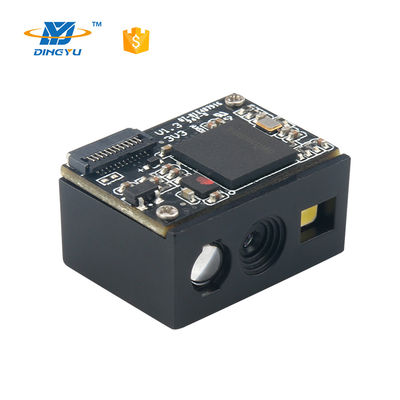

Name: DE2290D SDK Support USB Barcode Scanner Module with 300 scans/sec Speed 300,000 Pixel CMOS and 3mil/0.076mm Reading Precision
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

Casa Prodotti Motore di ricerca del codice a barre

DE2290D SDK Support USB Barcode Scanner Module with 300 scans/sec Speed 300,000 Pixel CMOS and 3mil/0.076mm Reading Precision

Dettagli:

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1

Contatto

Descrizione di prodotto dettagliata

Modello n.:	DE2290D	Tipo di interfaccia:	USB
Velocità di scansione:	300 ricerche/sec	Elemento di scansione:	CMOS
Pixel:	300.000 pixel, 640*480	Precisione di lettura:	3mil/0,076 mm
Profondità di campo:	30 mm~550 mm	Velocità di decodifica:	65cm/s
Modalità di scansione:	Manuale, Continuo, Rilevamento automatico, Controllo comandi	Metodo rapido:	Indicatore luminoso a LED, cicalino
Contrasto di stampa:	20%	Luce ambientale:	Ambiente buio, luce naturale interna
Peso:	3.5g	Dimensione:	21,35 mm L 15,50 mm L 11,40 mm A
Interfaccia:	FPC 12 pin Passo 0,5
Evidenziare:	300 scans/sec Barcode Scanner Module , 300 , 000 Pixel Barcode Scan Engine , 3mil/0.076mm Reading Precision QR Code Scanner Module

SDK Support USB QR Code 1D/2D Barcode Scanner Module Engine

Product Overview

The DE2290D is a high-performance embedded 2D image module featuring 300,000 global pixels with advanced CMOS image recognition technology and intelligent image processing system. Its compact design allows for easy integration into various equipment.

Key Features

Superior reading performance for barcodes on paper, merchandise, and digital screens
Compact, integrated design for versatile equipment integration
Ideal for self-service machines, price checkers, lockers, and more
Advanced image recognition technology for reliable scanning

Technical Specifications

Communication	USB (USB-KBW, USB-COM, HID-POS), TTL
Scan Type	CMOS, Global shutter
Resolution	300,000 pixel, 640×480
Reading Precision	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	30mm~550mm (varies by barcode type)
Decoding Speed	65CM/S
Scan Modes	Manual, Continuous, Auto Sense, Command control
Field of View	41° × 31°

Supported Symbologies

1D Barcodes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, and more.
2D Barcodes: QR Code, Data Matrix, PDF417, Aztec, HanXin Code, and more.

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan is a professional manufacturer with 18 years of experience. We have a dedicated QC team and testing equipment including engine age tests, wire bend tests, and switch life tests. All products pass CE, FCC, and ROHS certifications.

Q2: What is your quality control process?

We conduct 1 million wire bend tests and button tests. All devices are thoroughly tested before shipment.

Q3: What is the warranty period?

12 months warranty.

Q4: How do you maintain stable performance?

We use assembly line production with each product tested at least 4 times before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services including custom branding. Our technical team supports ODM development.

Q6: What are your company strengths?

We have specialized departments for R&D, production, testing, marketing, and customer service to ensure professional operations.

Q7: Are drivers required?

No drivers needed. Our scanners support plug-and-play operation with Windows, Mac, Linux, Android, and other systems.
