| Modello n.: | DS6600 | Tipo di interfaccia: | USB |
|---|---|---|---|
| Velocità di scansione: | 25cm/s | Elemento di scansione: | CMOS |
| Tempo di avvio: | 4s | Velocità di decodifica: | 25cm/s |
| Profondità di campo: | 55-350 mm | Modalità di scansione: | Modalità trigger Modalità di senso automatico |
| Angolo visivo: | Orizzontale 40° Verticale 30° | Contrasto di stampa: | 25% PZ |
| Peso: | 110 g senza cavo | Dimensione: | L180mm * W60mm * H80MM |
| Comunicazione: | USB-Kbw USB-COM RS232 | Lunghezza del cavo: | 1,5 m |
| Risoluzione: | 640*480 | ||
| Evidenziare: | 1D/2D Symbologies 2D Barcode Scanner,12 Months Warranty Handheld Barcode Scanner,Trigger Mode Auto Sense Mode POS Barcode Scanner |
||

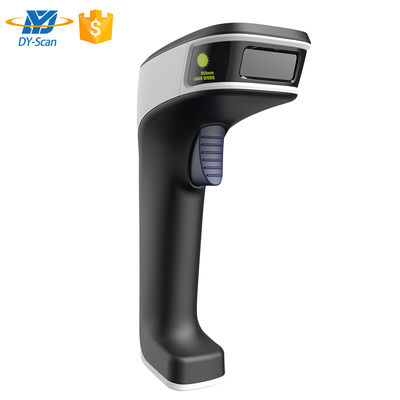

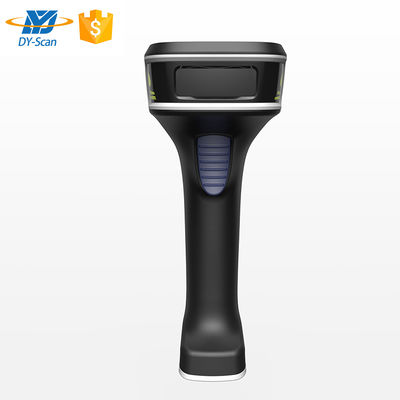

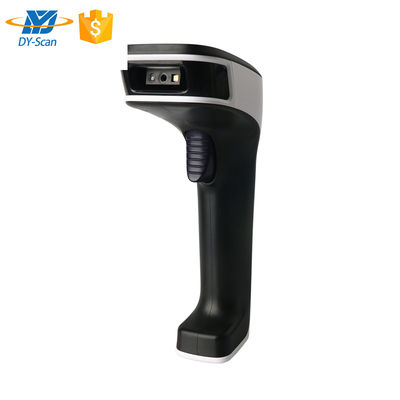

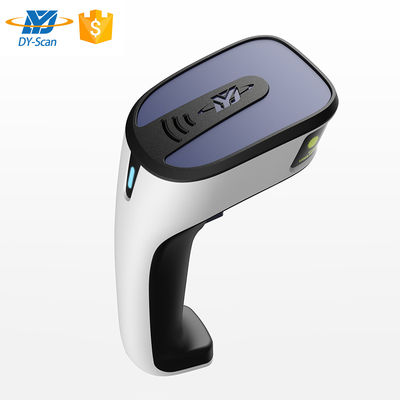

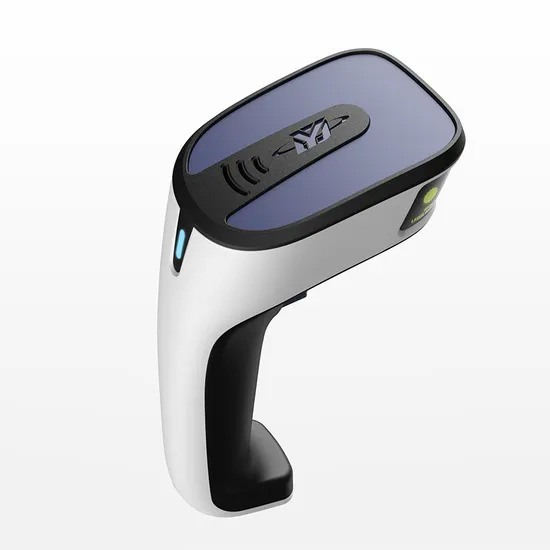

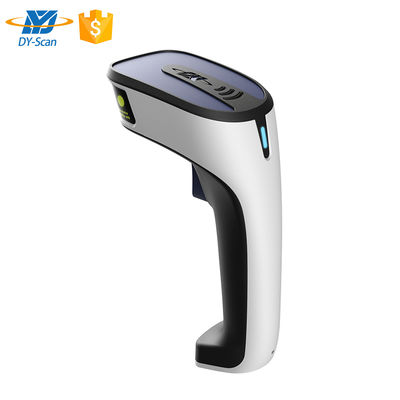

1D/2D Wired USB High Speed Scanning Pharmacode Aztec Barcode Scanner
| Parameter | Specification |
|---|---|
| Scan Type | CMOS |
| Light Source | Lighting: white LED Aiming; Red LED, wavelength coverage 525nm |
| CPU | ARM32-bit |
| Resolution | 640×480 CMOS |
| Working Distance | 20-550mm |
| Startup Time | 4s |
| Decoding Speed | 25CM/S |
| Depth of Field | 3mil:55~100mm, 13mil:55~350mm |
| Scan Mode | Trigger mode, Auto sense mode |
| Scan Angle | Roll:±360°, Pitch:±60° or greater, Yaw:±70° or greater |
| Visual Angle | Horizontal 40°× Vertical 30° |
| Print Contrast Signal | ≥25% PCS |
| Ambient Light | Dark environment, indoor natural light |
DYscan: We are professional manufacturers and developers of barcode scanners with 18 years of field experience. Our professional QC team uses testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, ROHS certifications.
DYscan: We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipping.
DYscan: 12 months warranty.
DYscan: We use flow line production throughout the process. Every product is tested at least 4 times before delivery.
DYscan: We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.
DYscan: As professional scanner manufacturers, we have specialized departments with dedicated directors. Our R&D department develops new products, production department handles manufacturing and testing, while Marketing and Sales department manages customer services.
DYscan: No driver installation required. Our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
