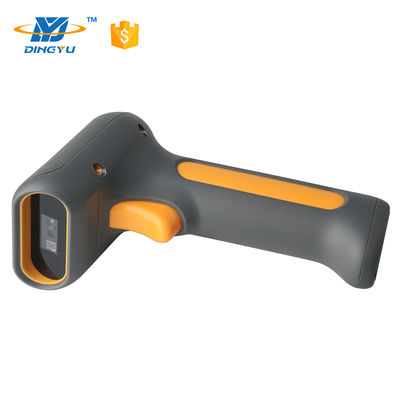

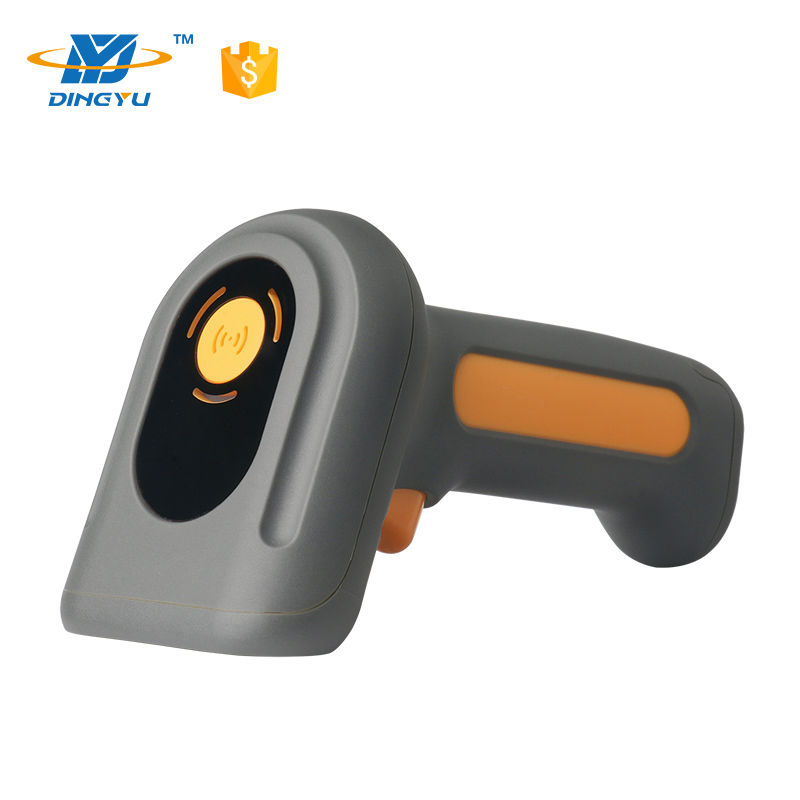

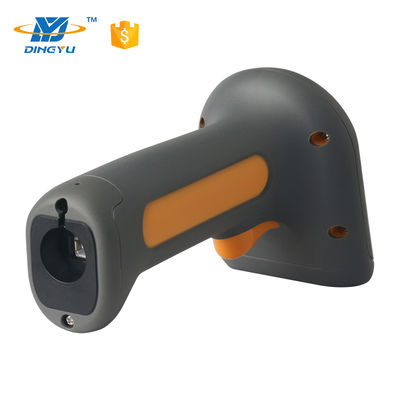

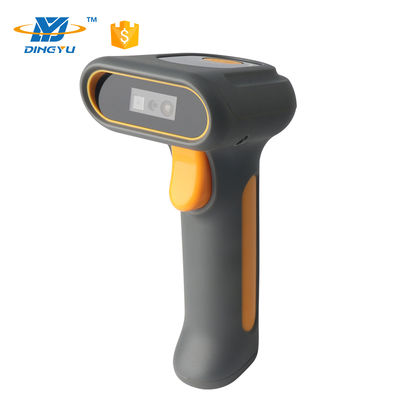

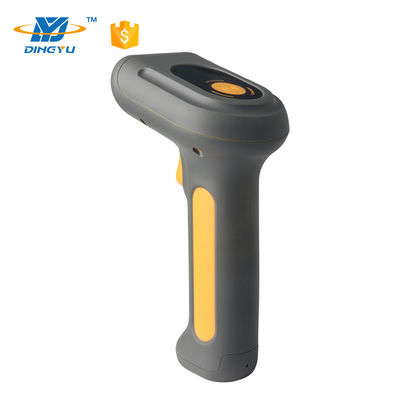

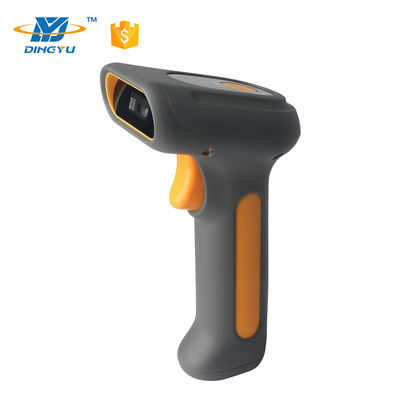

1D/2D Industrial IP65 Wired Handheld Barcode Scanner with CMOS Technology
Product Overview
The DS6530-2D is a wired 2D handheld barcode scanner featuring advanced CMOS image recognition technology. Designed for industrial environments, it efficiently reads barcodes from paper, goods, screens, and other media surfaces.
Key Applications
Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset tracking.
Product Features
- Ergonomic design for comfortable extended use
- Reads all mainstream 1D and 2D barcode formats
- High-performance processor enables fast decoding (3mil resolution)
- IP65 protection rating for waterproof and dustproof operation
- Supports multiple operating systems and programming languages
- Widely used in supermarkets and inventory management systems
Technical Specifications
Performance Parameters
| Scan Type |
CMOS |
| CPU |
32-bit |
| Resolution |
1024×1280 (1.3 million pixels) |
| Reading Precision |
≥3mil/0.076mm (PCS90%, Code 39) |
| Decoding Speed |
100CM/S |
| Depth of Field |
60mm~1000mm |
| Scan Modes |
Manual, Auto Sense |
| Prompt Modes |
LED indicator, buzzer |
| Field of View |
40° × 30° |
| Scan Angles |
Pitch: ±60°
Roll: ±360°
Skew: ±55°
|
| Supported Symbologies |
1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, MSI, GS1 Databar
2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec
|
Physical Parameters
| Weight |
Approx. 290g (scanner only) |
| Dimensions |
153.2mm × 66.0mm × 110.5mm (L×W×H) |
| Communication Modes |
USB, RS232 |
| Interface Types |
USB, DB9 |
| Power Supply |
DC 5V@260mA (operating) |
Environmental Specifications
| Operating Temperature |
-20°C to 50°C |
| Storage Temperature |
-40°C to 60°C |
| Humidity |
5% to 95% (non-condensing) |
| Transport Vibration Test |
10H@125RPM |
Included Accessories
- USB Cable for connecting to host devices
- RS232 Cable with USB power supply
Product Images
Frequently Asked Questions
Q1: How do you ensure high quality barcode scanners?
DYscan is a professional manufacturer with 18 years of experience. Our quality control includes professional testing equipment (engine age test, wire bend machine, switch life test, shock resistance test). All scanners pass CE, FCC, and ROHS certifications.
Q2: What quality control measures do you implement?
We conduct 1 million wire bend tests and 1 million button press tests. All devices undergo thorough testing before shipment.
Q3: What is the warranty period?
12 months warranty.
Q4: How do you maintain stable performance?
We use assembly line production with at least 4 quality tests per product before delivery.
Q5: Do you offer OEM/ODM services?
Yes, we provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM development.
Q6: What are your company strengths?
We have specialized departments for R&D, production, testing, marketing, and customer service to ensure comprehensive support.
Q7: Are drivers required?
No, our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
