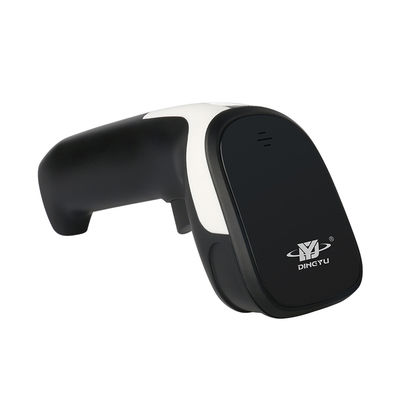

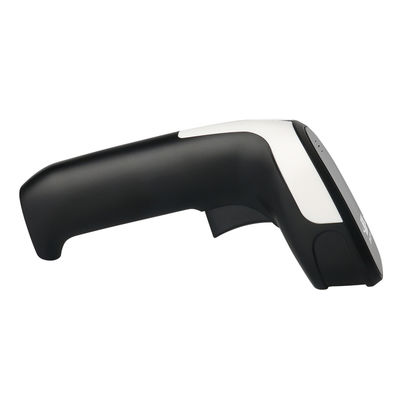

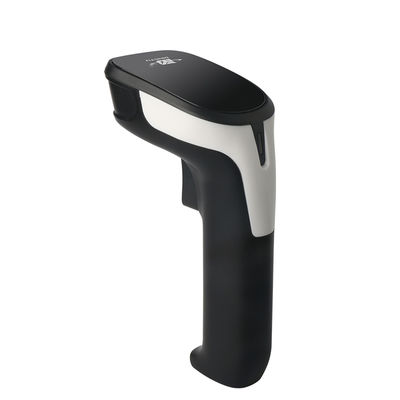

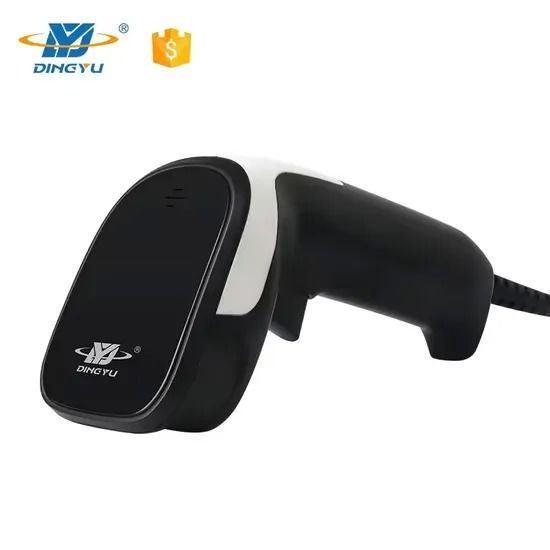

Name: DS5110 1D CCD Barcode Scanner with USB RS232 3mil Resolution
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Casa Prodotti lettore di codici a barre 1D

DS5110 1D CCD Barcode Scanner with USB RS232 3mil Resolution

Dettagli:

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	10

Contatto

Descrizione di prodotto dettagliata

Modello n.:	DS5110	Tipo di interfaccia:	USB, rs232
Elemento di scansione:	CCD	Risoluzione della fotocamera:	640*480
Risoluzione del codice a barre:	3mil Code39	Profondità di campo:	10-600 mm
Modi di scansione:	Manuale, continuo, scansione automatica, lampeggiante	Contrasto di stampa:	20%
processore:	32 bit	Dimensioni:	L161mm * W63mm * H80mm
Peso:	147g	Comunicazione:	USB ((USB-KBW,USB-COM), RS232
Temperatura operativa:	Da -20 a 50 gradi	Temperatura di conservazione:	Da -40 a 70 gradi
Altezza di caduta:	1,5 m
Evidenziare:	1D CCD barcode scanner with USB , 1D barcode scanner RS232 interface , DS5110 barcode scanner 3mil resolution

Handheld 1D Wired Scanner Barcode Reader CCD Barcode Scanner with USB RS232

High-Performance 1D Barcode Scanner

The DS5110 is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for reliable performance across various applications, it efficiently reads barcodes from paper, products, screens, and other media surfaces.

Key Applications

Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory systems.

Technical Specifications

Parameter	Specification
Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/s
Depth of Field	10mm-600mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing
Scan Angles	Pitch: ±60° \| Roll: ±30° \| Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Physical Dimensions	161mm (L) × 63mm (W) × 80mm (H)
Weight	≈147g (without cable)
Communication Interfaces	USB (USB-KBW, USB-COM), RS232
Power Supply	DC 5V@80mA (operating)
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 70ºC
Humidity	5% to 95% (non-condensing)
Drop Resistance	1.5m
